This is an update to the 5vdc tri-color LED signal for the staging yard. The polarity has been changed to common +5vdc to match the configuration of the dwarf signals also used in the staging yard.

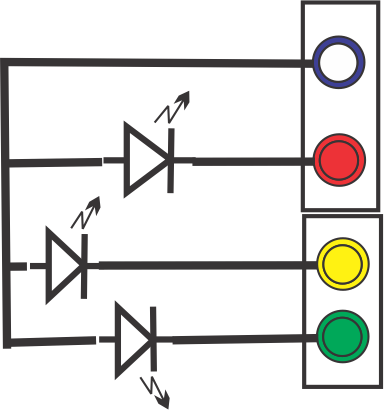

Wiring diagram for short tri-color LED segnals

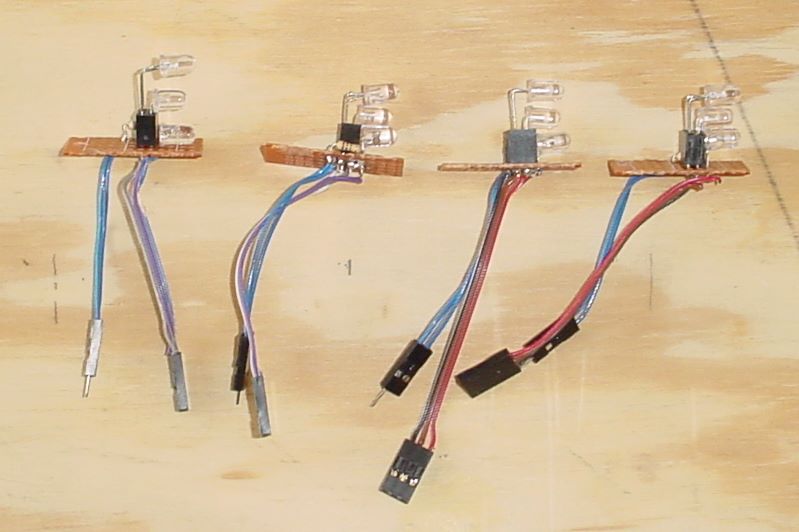

Picture of the 3-LED 'Parking Lot' signals


Or the dwarf signal lights. with adaptor boards.
